Size: 1/2"-12", DN10-DN300
Material:SS304 /1.4301, SS316L/1.4404,ASME BPE 316L 1.4435 NB2 Fe≤0.5%
Pressure: vacuum to 10bar (1.0 MPa) (≤DN150) ; 5bar (＞DN150)
Seal: EPDM SILICON FKM FFKM HNBR FVMQ NBR
Connection method: thread, clamp, welding, flange
Drive mode: manual, turbo, pneumatic, electric
Surface: Ra≤0.8μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm
Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853
Certificaiton:FDA 177.2600,3A-18-03, Gladd II USP Glass VI Chapter 88 ;GB4806.11;EG VO/1935-2004;PED/97/23/EC

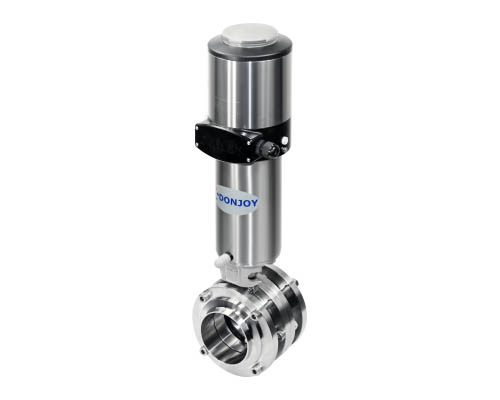

DONJOY sanitary stainless steel three piece butterfly valve, double flange butterfly valves
What is sanitary three piece butterfly valve?
Sanitary flange butterfly valve is composed by butterfly plate, valve body, seal ring, flange,flange seal and handle/actuator. Butterfly plate is connected with actuator and will start to work by the rotated actuator. When the valve is closed,the butterfly plate will form a seal with the sealing gasket, and the pipe system is cut off. When the valve body is opened,the pipe system is ready for transpotation.
DONJOY Sanitary SS Butterfly Valve Advantage
Donjoy has been producing butterfly valves for more than 30 years.
Manufacturing more than 3 million units for various industries, Very flexible valve body combination, super long life, super small torque, Forged valve body, forged valve disc, Fully automatic robot production line.
Technical Features
| Technical Date | |
| Size: | 0.5"-12"/DN10-DN300 |
| Maximum pressure: | 10bar (≤DN150) ; 5bar (＞DN150) |
| Minimum pressure: | Full vacuum |
| Operating temperature: | -10°C to 120°C (150°C optional) |
| Applicable medium: | Water, oil, gas and other media |
| Connection way: | Clamp, welding, thread, flange |
| Driving type: | manual，pneumatic，electric |
| Air pressure: | 5-7 bar (for pneumatic actuator) |
| Liquid detection pressure: | 12bar (≤DN150) ; 6bar (＞DN150) |
| Air detection pressure: | 6bar (≤DN150) ; 5bar(＞DN150) |
Various handle configurations
Performance Curve
Operating Torque
Size 1/2"-1" ≤DN25,Torque 3NM
Size 1.5" DN32,Torque 4NM
Size 2" DN40,Torque 5NM
Size 2.5" DN50,Torque 10NM
Size 3" DN65,Torque 14NM
Size 3.5" DN80,Torque 18NM
Size 4" DN100,Torque 25NM
Size 5" DN125,Torque 40NM
Size 6" DN150,Torque 55NM
Size 8" DN200,Torque 80NM
Size 10"-12” DN250,Torque 100NM

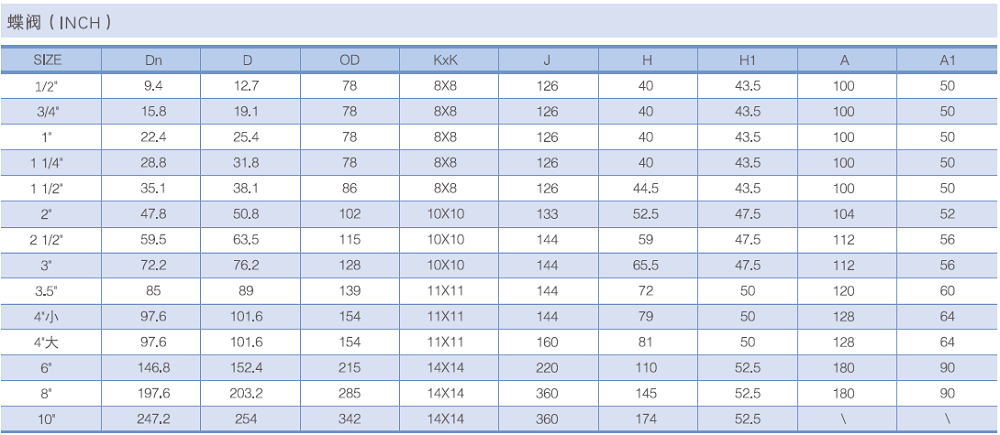

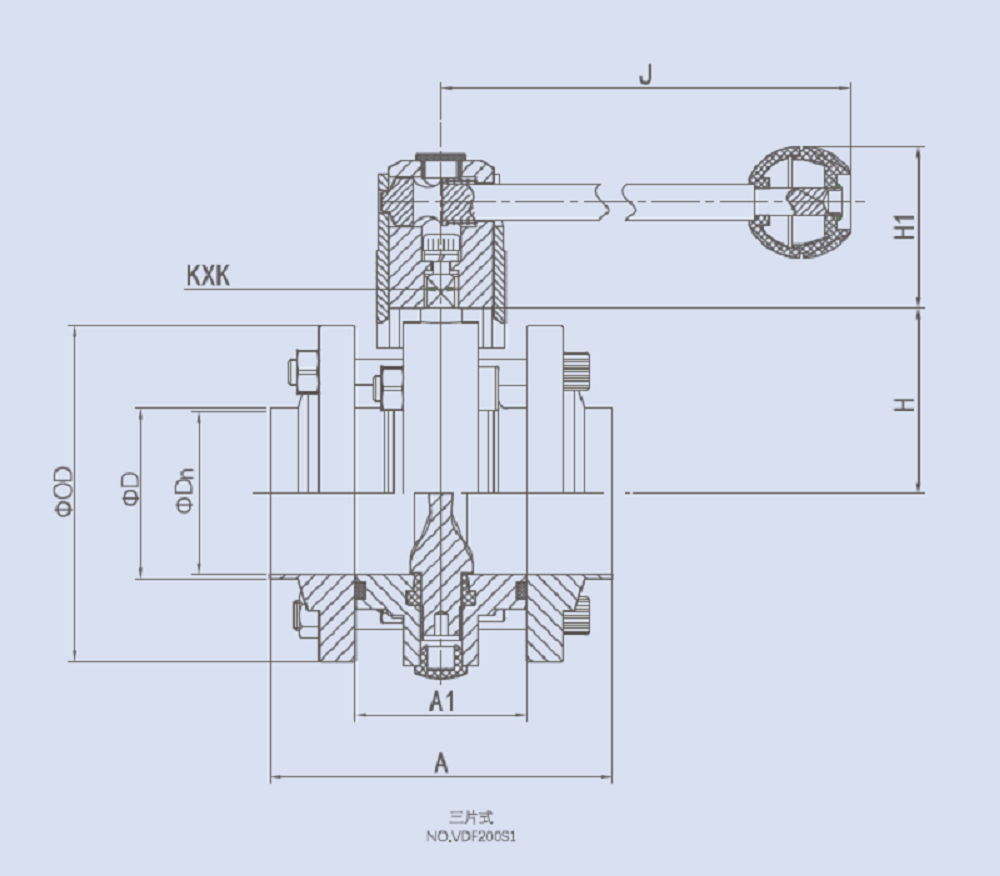

Sanitary butterfly valve drawing
Sanitary Flange Butterfly Valve Package
0
Sanitary flange butterfly valve is composed by butterfly plate, valve body, seal ring, flange,flange seal and handle/actuator. Butterfly plate is connected with actuator and will start to work by the rotated actuator. When the valve is closed,the butterfly plate will form a seal with the sealing gasket, and the pipe system is cut off. When the valve body is opened,the pipe system is ready for transpotation.
| File | Language | Size |
|---|---|---|
 butterfly valve catalogue |
English | 21.1MB |
| sanitary valves catalogue |
English | 30.2MB |
