Clean the monitor-QK-TOP

Technical Features
●Power supply: DC24V, ≤ 2W
●Feedback output: Users can customize the output type, DC/AC ≤ 30V,≤ 50mA (RLY)
●Input: PNP DC24V
●Material: overcurrent component SS316L/1.4404, PEEK
●Shell: Aluminum alloy, engineering plastic
●Protection level: Ip65
●Applicable temperature: ≤ 80 ℃

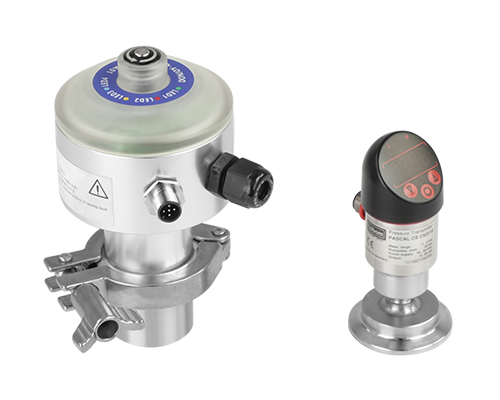

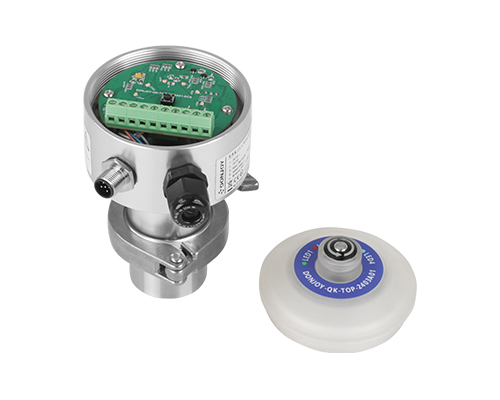

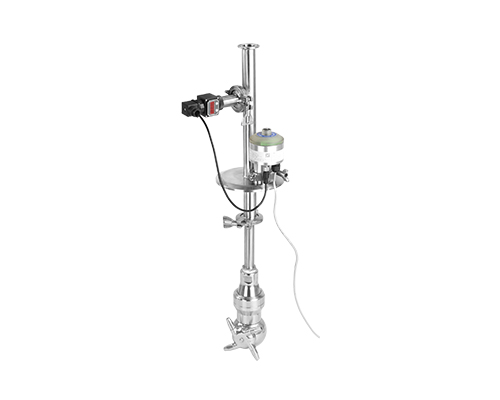

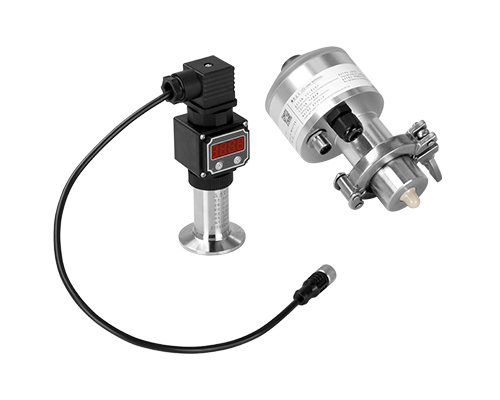

QK-TOP-2403A01 Monitor is a sensor used to detect whether the cleaner has completely cleaned the inside of the tank in a closed container. If the tank cannot be cleaned properly, the monitor will provide feedback signals to the PLC and visually inspect the different colors of the LED to distinguish the various states of the cleaner during the cleaning process.
This monitor has multiple functions:
-Automatic teaching demonstration
-Pressure level setting
-Abnormal pressure detection, warning and feedback output signals through different light colors
-Failure to effectively clean detection, warning and feedback output signals through different light colors
-Mechanical fault detection, warning and feedback output signals through different light colors
